Metal Text Effect

In this Photoshop tutorial, I’ll show you how to create a metal text effect in Photoshop. You’ll learn how to use blending options to convert an ordinary text into the metal one. You’ll also learn how to use a clipping mask, blend modes, textures and adjustment layers.

Preparing Background

Step 1

Create a new document in Photoshop with the following settings:

metal1

Step 2

Place the metal texture to main document and place it as shown below. Try to resize it using Transform Tool (CTRL + T) to make it fit nicely to main document.

metal2

Step 3

Make a Curves adjustment layer and darken the texture. Go to Layer > New Adjustment > Curves and use the following settings to darken the texture.

metal3

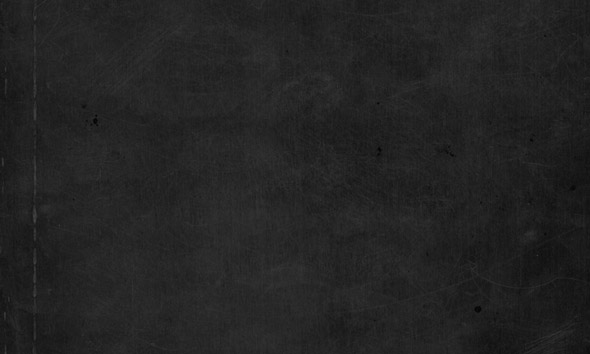

Results:

metal3a

Step 4

On the layer mask of Curves, use a soft round black brush to erase the effect on the middle of it. Try to make middle section brighter.

metal4

Results:

metal4a

Step 5

Now type the text using Type Tool (T) and I typed ‘Metal’, feel free to use any font which you like most. I am using Calibri Italic font and it’s a default font in Photoshop. Here is the text that I typed:

metal5

Step 6

Now we are going to apply blending options effect to our text. Right click on text layer and choose ‘Blending Options’.

First, use the Bevel & Emboss styles and here are the values:

metal6

Next, use Inner Shadow style:

metal6a

Gradient Overlay:

metal6b

Drop Shadow:

metal6c

Result with metallic finish:

metal6d

Step 7

Place the metal texture one more time and this time place it above the text layer. Now right click on texture layer and choose Create Clipping Mask and this will apply the metal texture to our text.

metal7

Results after applying metal texture to text:

metal7a

Step 8

Duplicate this metal texture layer one more time but set it as a clipping mask.

metal8

Change the blend mode of duplicated metal texture layer to Multiply and reduce its opacity to 70%. This will stronger the metal effect on the text.

metal8a

Final Adjustments

Step 9

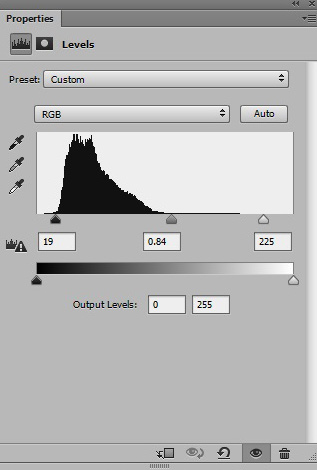

Use the Levels adjustment layer to increase the contrast. Use it with following settings:

metal9

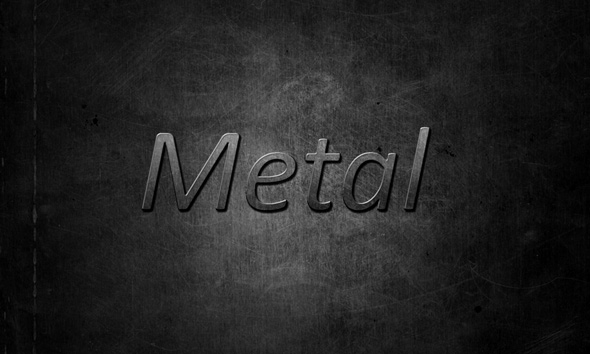

Results after increasing contrast:

metal9a

Step 10

Finally, use the Color Balance adjustment layer to give it blue metal colors. Use it with following settings :’

metal10

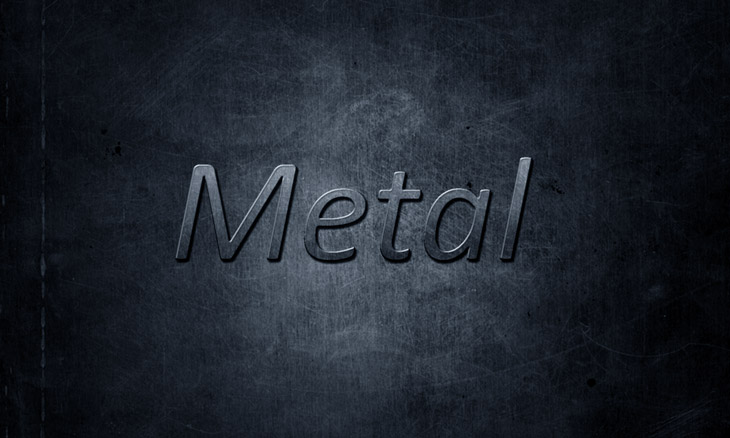

Final Results:

metal10a

Conclusion

Thanks for following the tutorial and I hope that you’ve learned some techniques to create a metal text effect. If need any help then just let me know.
