Learn how to create a fantasy landscape matte painting named “Bridge to Mountains”. In this tutorial you’ll learn how you can combine different stock images into a cohesive scene. You’ll also learn how to manage color and atmosphere to achieve a beautiful and colorful result. Follow the tutorial and find out more to enhance your photo manipulation skills.

Tutorial Resources

Preparing a Background for Fantasy Matte Painting

Step 1

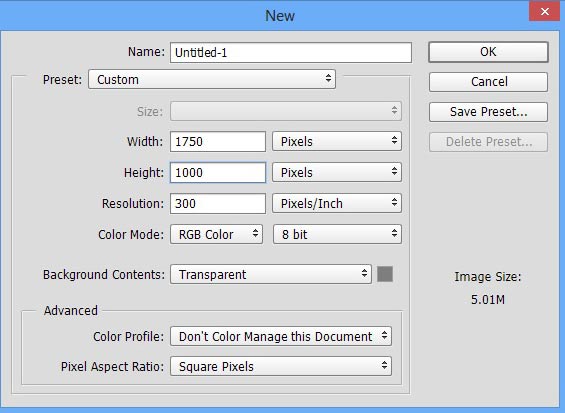

Create a new document in Photoshop by selecting File > New and use the following settings. Feel free to choose your own setting but make sure it should be wider enough for the scene.

step-001

Step 2

Place the mountain 1 image to the main document by selecting File > Place Embedded or Place . Keep the some space from top of the document.

step-002

Step 3

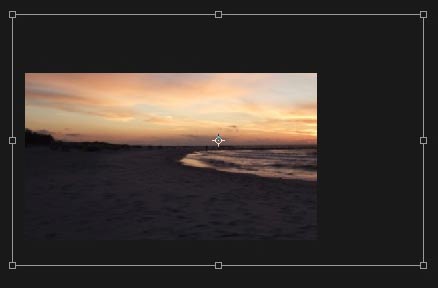

Place the sky to the main document and place it under the mountain 1 layer. Use the Transform Tool (CTRL + T) to resize the sky as shown in the image below.

I also erased the mountain 1 layer so you can clearly see how I placed it.

step-003

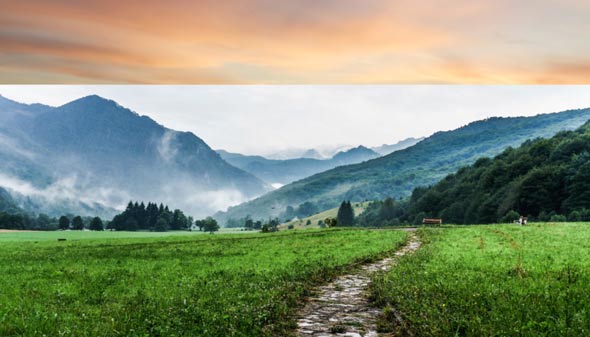

Here are the results :

step-003a

Adding Bridge

Step 4

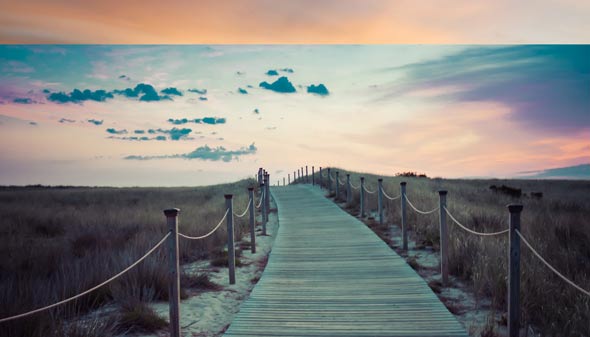

Now place the bridge image to the scene and place it above all layers.

step-004

Step 5

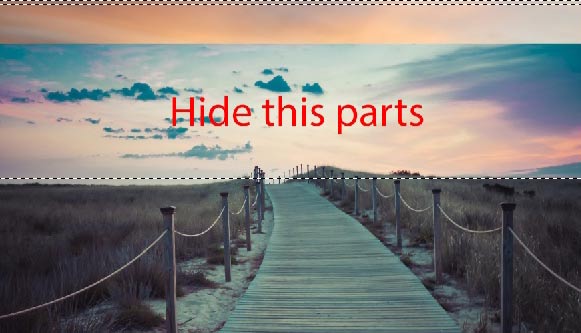

Add a Layer Mask (Layer > Layer Mask > Reveal All) to bridge layer. Activate the Brush Tool (B) and set its opacity and flow about 30%. Use a soft round black brush to hide the selected sky part of bridge by painting on the layer mask with black color.

step-005

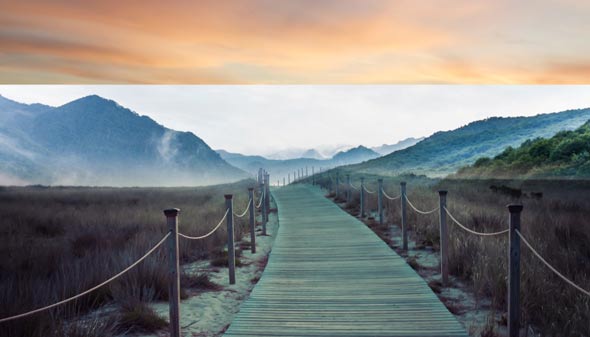

Results after masking :

step-005a

Step 6

Now select the mountain 1 layer and add a Layer Mask to it. Hide out the selected parts of mountain 1 layer using a soft round brush with the same setting as in the previous step. Don’t worry about the edges of mountains 1 layer and don’t make the selection (instead of this try to hide it using layer mask) of mountains 1 layer otherwise you’ll get sharp edges. Also, try to leave some parts of it for better blending and later we’ll blend them using Adjustment Layers .

step-006

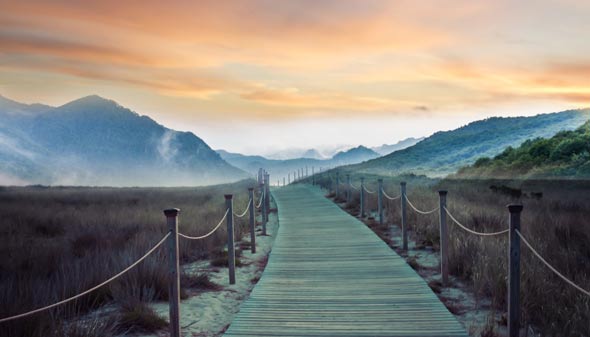

Results :

step-006a

Step 7

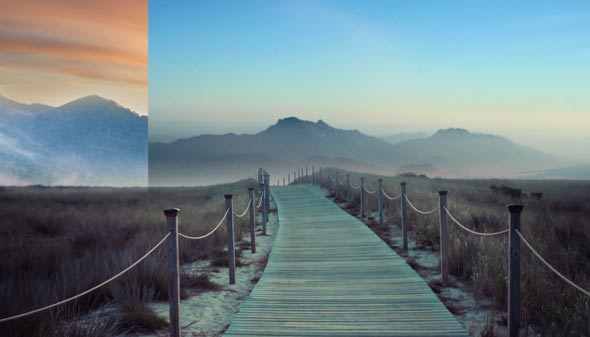

Now add the mountain 2 image to the main document and place it below the bridge layer but above the mountain 1 layer.

step-007

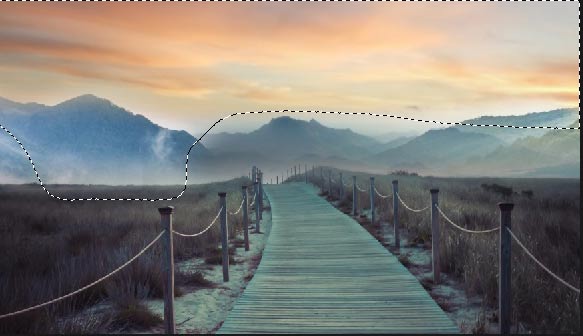

Add a Layer Mask to mountain 2 layer and use the layer mask to hide out the selected parts of mountain 2.

step-007a

Here is the process so far.

step-007b

Adjusting the Color of Landscape

Step 8

It’s time to adjust the color of all manipulated images so far using Adjustment Layers . We’ll start with sky layer, so add Color Balance (Layer > New Adjustment Layer > Color Balance) adjustment layer to sky and only change the values of Midtones .

step-008

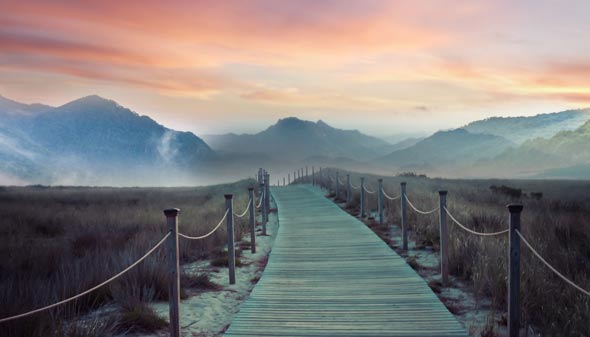

Results with added Magenta Tones to sky.

step-008a

Step 9

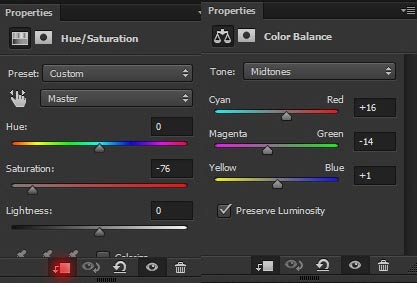

Select the mountain 1 layer and add a Color Balance and Hue/Saturation adjustment layer to it as clipping mask (press the red button for clipping mask).

step-009

Here are the results with matched colors of mountain 1 with the background.

step-009a

Step 10

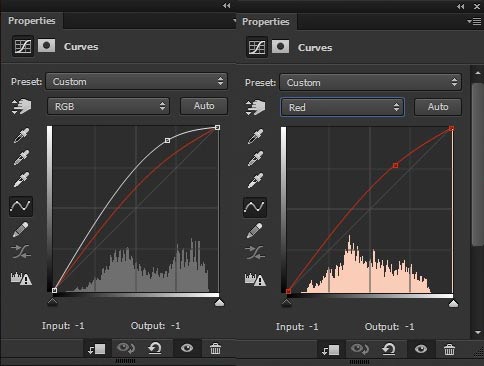

Mountain 2 layer seems darker as compared to the background. To fix this, use a Curves adjustment layer for mountain 2 to increase the lightness and to add red color tones to it. Here are the values for Curves .

step-010

Results :

step-010a

Step 11

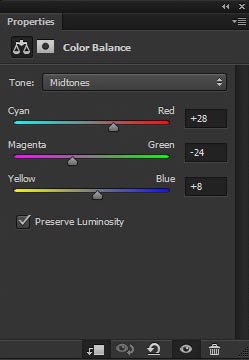

Add a Color Balance to mountain 2 to match its color with background. Only change the setting of Midtones .

step-011

Results :

step-011a

Step 12

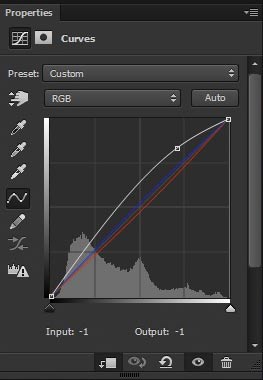

Now it’s time to adjust the bridge. Add a Curves
adjustment layer to increase the brightness of bridge.

step-012

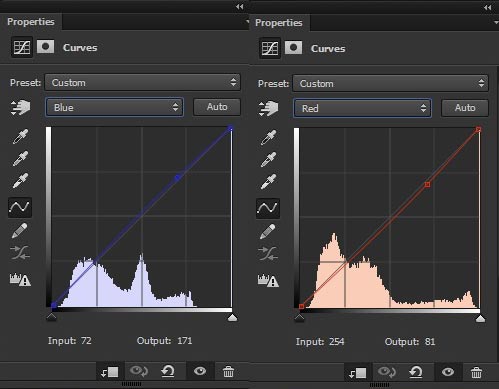

I also used the Red and Blue colors to add little bit red and blue tones to bridge.

step-012a

Step 13

Here are the results after using Curves :

step-013

Step 14

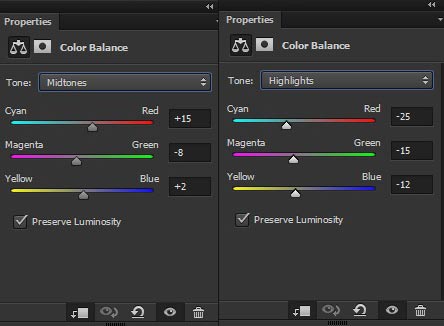

Continue colorizing the bridge using Color Balance adjustment layers. Only change the setting for Midtones and Highlights .

step-014

Results :

step-014a

Step 15

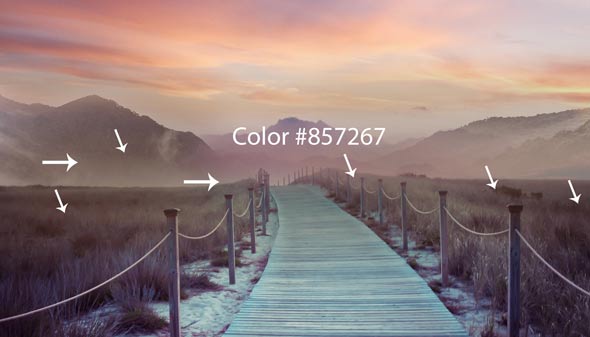

Now we’re going to add subtle lights on the scene. Create a new layer and name ‘light 1’. Set your foreground color to #857267 . Use a soft round brush to paint some lights in the middle of the scene. You can also use the arrow indication for reference.

step-015

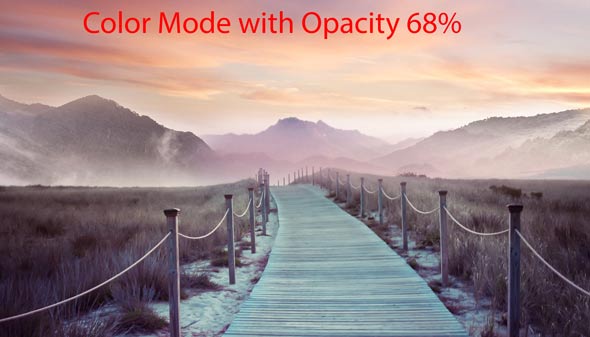

Change the blend mode of this layer to Color and reduce the opacity to 68%.

step-015a

Adding Model

Step 16

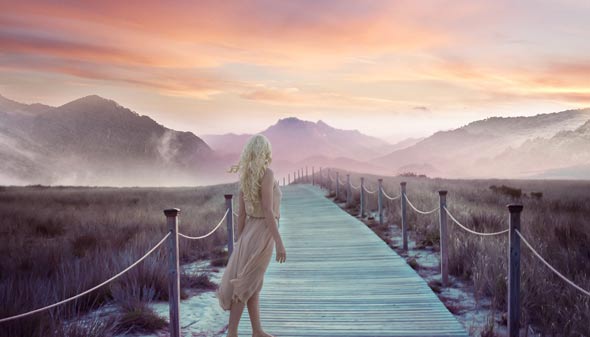

Isolate the model from its background and then place it to the main document. Place it exactly as shown in the image below because some of model feet parts are covered by the beach sand so therefore I placed it as shown in the image. For hair I’d say use the combination of Refine Edge Tool and Smudge Tool . I am not going to explain it as I already written tutorial on hair extraction. You can follow link here for Smudge Tool to paint hair and here for using Refine Edge Tool to extract hair.

step-016

Step 17

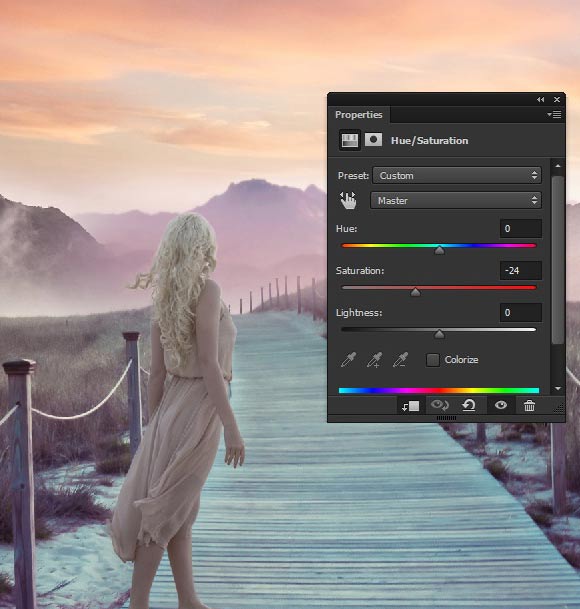

Use a Hue/Saturation adjustment layer to reduce the saturation on model.

step-017

Step 18

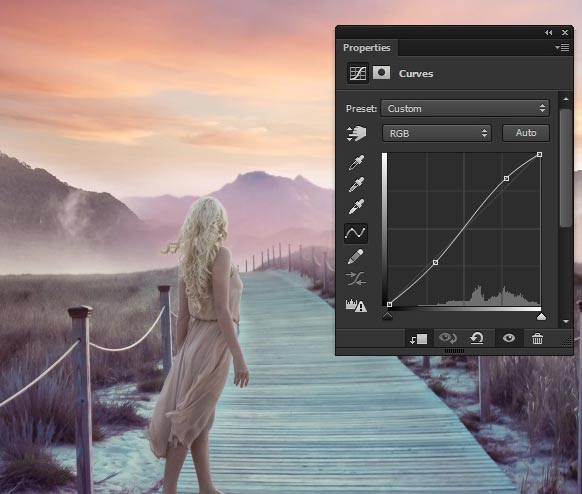

Increase the lightness of model using Curves adjustment layers.

step-018

Step 19

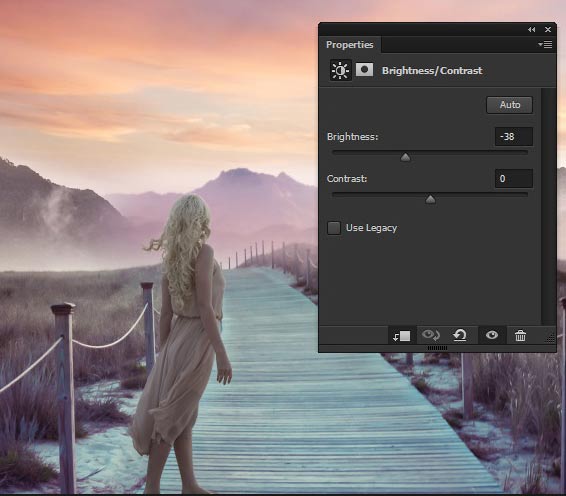

Decrease the brightness of model using a Brightness/Contrast adjustment layer.

step-019

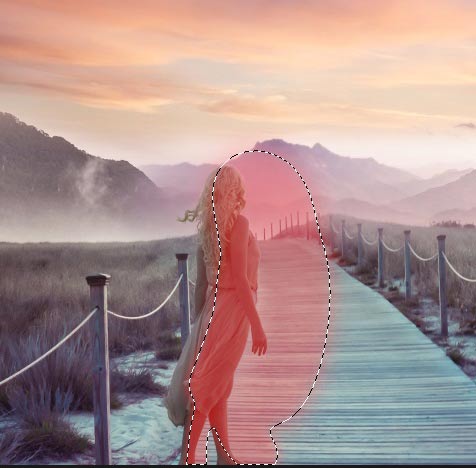

Now hide the effect of Brightness/Contrast on the selected parts (highlighted in red color) of model to maintain some light there. Use a soft round black brush to hide the effect using a layer mask.

step-019a

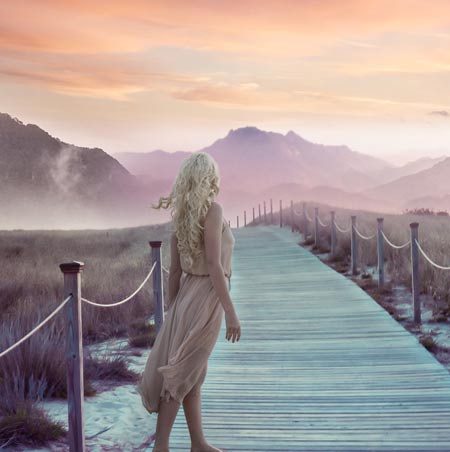

Results :

step-019b

Step 20

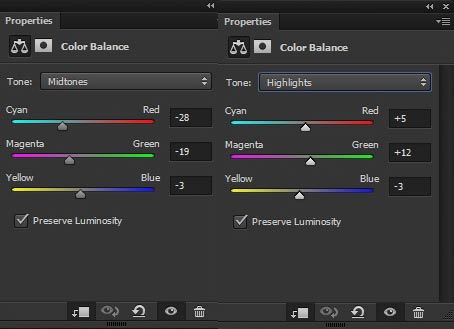

Add a Color Balance to model and only change the value of Highlights and Midtones .

step-020

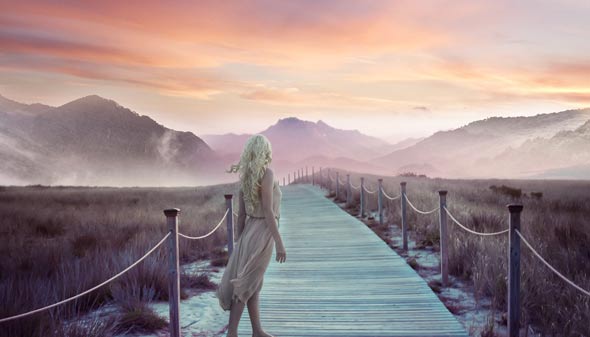

Results :

step-020a

Refining the Shade and Lights of Model

Step 21

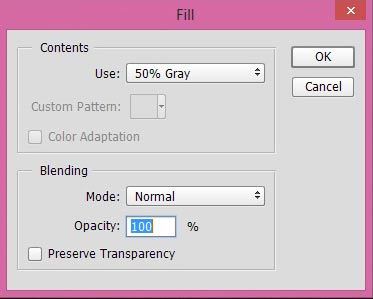

We are now going to refine the shades and lights on the model by using Dodge and Burn Tool non-destructively. To do this, create a new layer and then select Edit > Fill then fill the layer with 50% gray color.

step-021

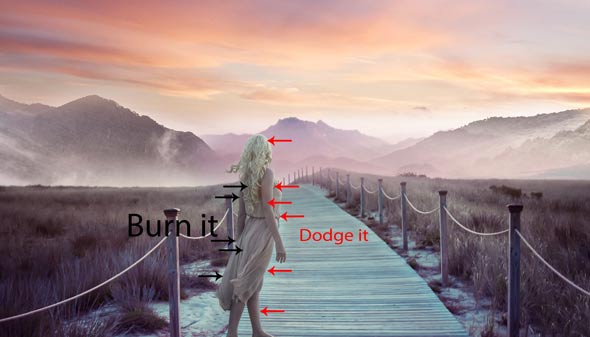

Use the Dodge and Burn Tool (O) with Midtones Range (set it on the option bar), Exposure about 9%-10% to refine the light and shade of model. Use the Dodge Tool to brighten the model front part (indicated by red arrows), and the Burn Tool to the darken the model back parts (indicated by black arrows). Here is the image for reference.

step-021a

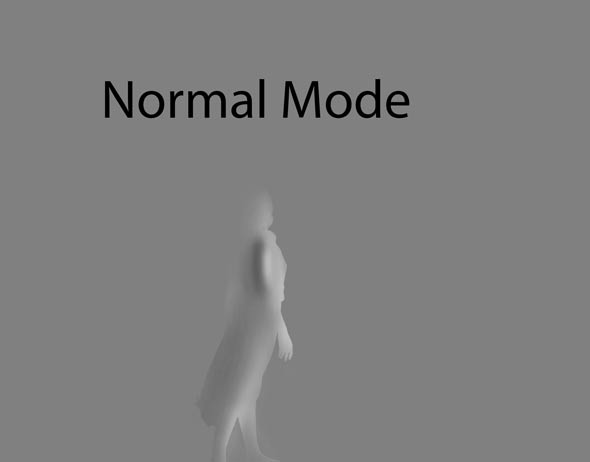

Results on Normal Mode :

step-021b

Here are the results on Overlay Mode :

step-021c

Painting Birds

Step 22

Load the birds brushes in Photoshop and use the bird’s brushes to paint some birds.

step-022

Adding Pigeon

Step 23

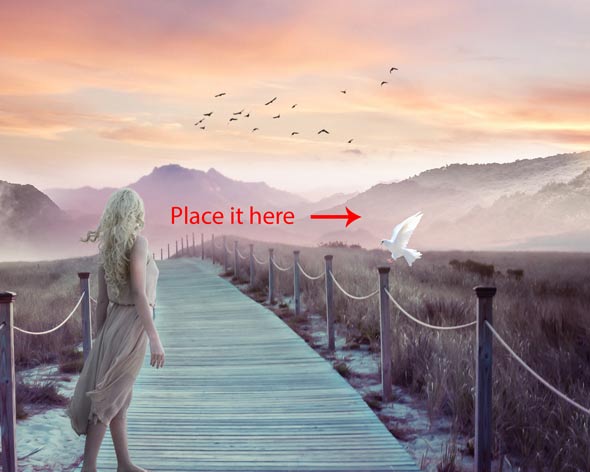

Extract the pigeon from its background and then place it as shown in the image below. Don’t forget to flip is horizontally using
Transform Tool (CTRL + T)
.

step-023

Step 24

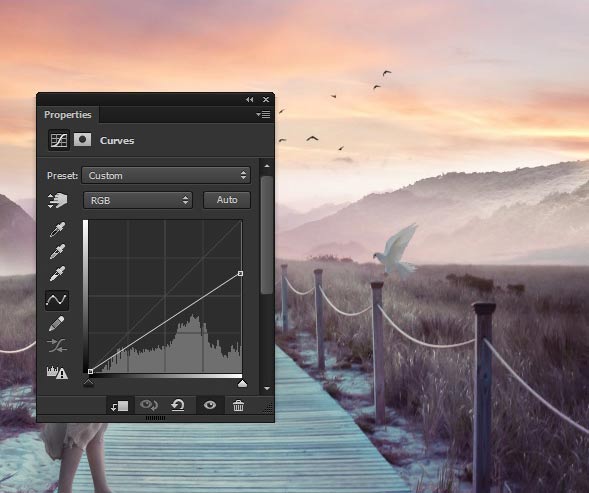

Reduce the lightness of pigeon using a Curves adjustments layers.

step-024

Step 25

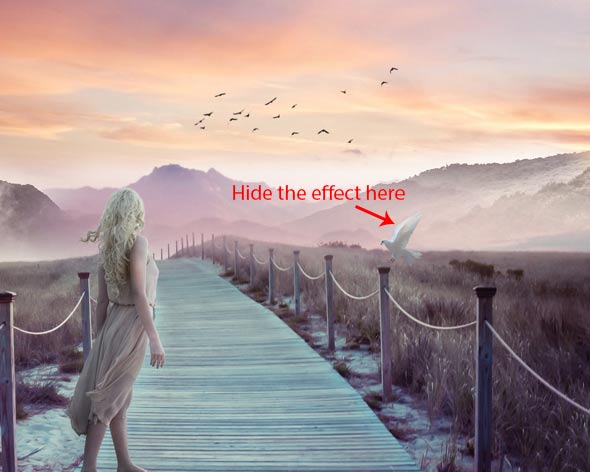

I am aiming to create light source just above the pigeon left-hand side. So we should maintain lights on pigeon wing parts and to do this, I erased the selected effect of Curves on wings.

step-025

Step 26

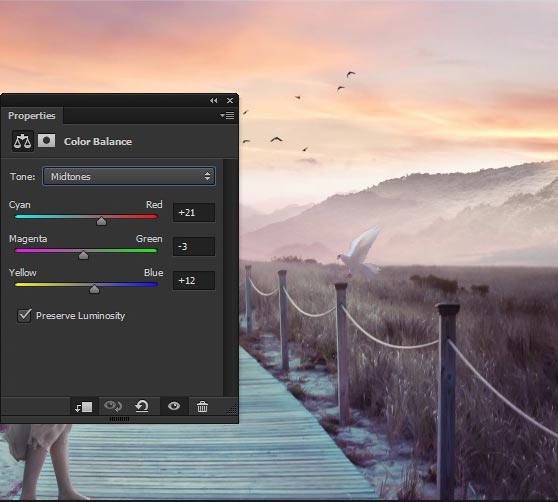

Now match the color of pigeon using a Color Balance adjustment layers.

step-026

Creating Light Source

Step 27

Open up the lens flare packs and place the Flare (26) to main document. The aim is to make a light source using lens flare.

step-027

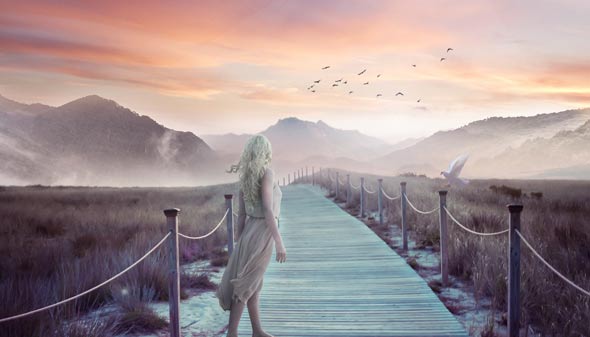

Change the blend mode of lens flare to Screen and reduce the opacity to 50% (I don’t want to make the glow more stronger as I want to make the lights natural as much as I can). Also Use the Layer Mask to get rid from unwanted edges.

step-027a

Step 28

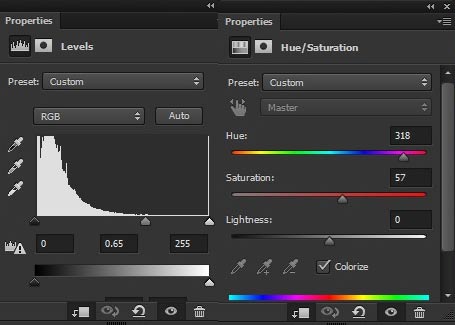

Use the following adjustment layer for lens flare. By using Level adjustment layer you’ll increase the contrast of lens flare and by using Hue/Saturation adjustment layer you’ll match the color of it.

step-028

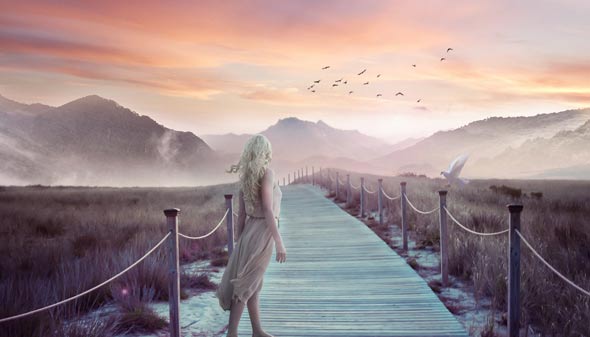

Results :

step-028a

Step 29

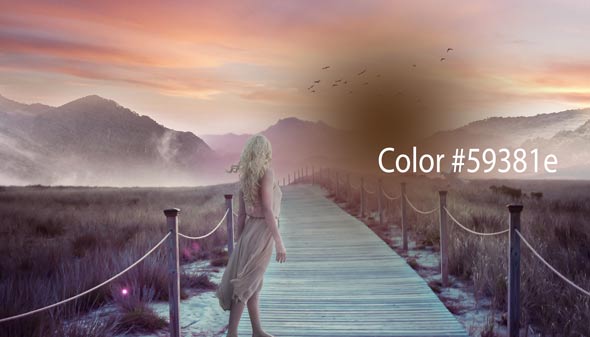

Create a new layer and name it ‘light 2’. Set your foreground color to #59381e and using a soft round brush paint a big stroke (size around 1200-1300 pixels) as shown in the image below to make light source.

step-029

Change the blend mode to Linear Dodge and reduce the opacity to 20%.

step-029a

Final Adjustments

Step 30

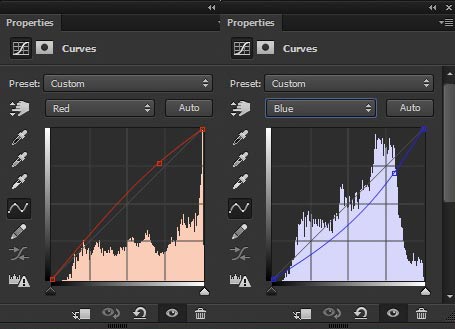

It’s time for Final Adjustment to finalize the whole adjustments. Make a Curves adjustment layer, above all layers, to entire scene.

step-030

Here are the results :

step-030a

Step 31

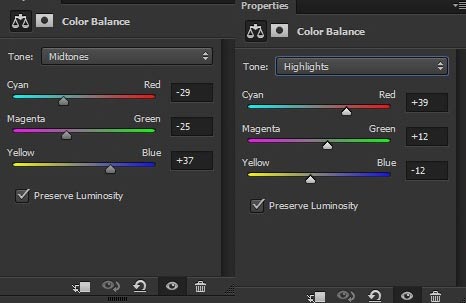

Make a Color Balance adjustment layer to add colors to entire scene.

step-031

Results :

step-031a

Step 32

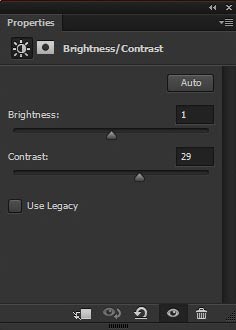

Add a Brightness/Contrast adjustment layer to increase the contrast of overall scene.

step-032

Results :

step-032a

Step 33

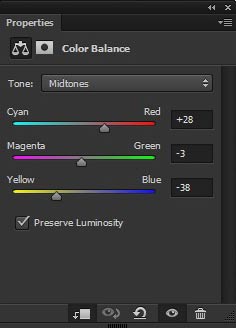

I’ve noticed that the color on mountain 2 layer not matching with the rest of the scene. So I just slightly changed the Color Balance values for mountain 2 layer. Here are the new setting for mountain 2 Color Balance .

step-033

Here are the Final Results :

step-033a

Conclusion

Thanks for following the tutorial and I hope you’ve learned something new today. I am also excited to hear your feedback on the tutorial. Like it, share it, tweet it and comment on it if you like the tutorial. If I miss anything then do let me know.
